SEALED LEAD-ACID BATTERIES

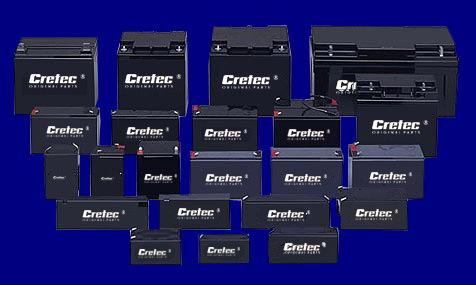

Cretec Sealed Lead Acid Batteries
Model
No.
 Nominal
Voltage
(V)
 Rated
Capacity
20
Hours
Rate
(Ah)		 End Use Outline Dimensions
(mm)
 Wt.
(Approx.)

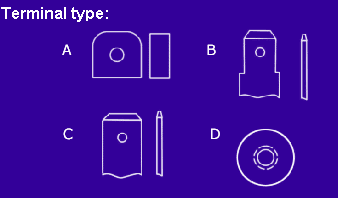

(Kgs)		 Terminal
Types		 Terminal
schematic
Length
 Width
 Height
 Total
Height
CRE-6V3.4
 6
 3.4 Main Power &
Standby Power		 134 34 60 66 0.62 B
CRE-6V4.2 6 4.2 Main Power & Standby Power 70 48 102 108 0.78 B/C
CRE-6V7.2 6 7.2 Main Power & Standby Power 151 34 94 100 1.3 B/C
CRE-6V12 6 12.0 Standby Power 151 50 94 100 1.95 B/C
CRE-12V2.2 12 2.2 Main Power & Standby Power 177 34 60 66 0.8 B
CRE-12V3.4 12 3.4 Main Power & Standby Power 134 67 60 66 1.2 B
CRE-12V7 12 7.0 Standby Power 151 65 94 100 2.5 B/C
CRE-12V7.2 12 7.2 Main power & Standby Power 151 65 94 100 2.66 B/C
CRE-12V12 12 12.0 Main Power & Standby Power 151 98 94 100 3.8 B/C
CRE-12V17 12 17.0 Main Power & Standby Power 181 76 167 167 6.5 A/D
CRE-12V20 12 20.0 Standby Power 181 76 167 167 6.6 A/D
CRE-12V28 12 28.0 Standby Power 165 125 175 180 11 A/D
CRE-12V33 12 33.0 Main Power & Standby Power 196 130 155 180 12 A/D
CRE-12V42 12 42.0 Standby Power 197 165 175 180 16 A/D
CRE-12V65 12 65.0 Standby Power 350 166 175 175 20 A/D
CRE-12V100 12 100.0 Standby Power 407 173 210 236 33 A/D

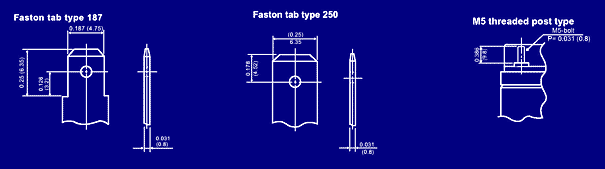

TERMINAL DIMENSIONS

Terminal Data of the medium-capacity (17 to 100Ah) battery
Bolt and Nut type(M5,M6,M8)


Terminal Dimensions Inch(mm)


Terminal Materials

Faston 187:Tin Plated Bass
Faston 250: Tin Plated Brass
Bolt & Nut: Lead Alloy
